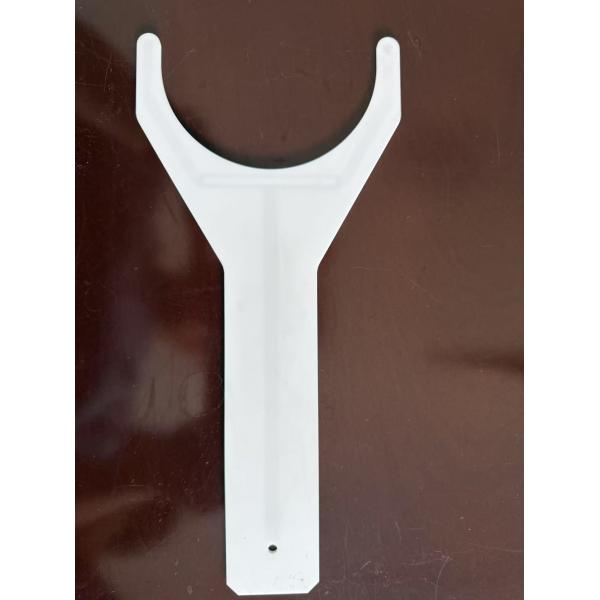

3D-Printed Ceramic Arm High-Strength And High-Temperature Resistance
3D-printed ceramic robotic arms are high-performance robotic components manufactured using advanced additive manufacturing technology. Made primarily from alumina (Al₂O₃) or silicon carbide whisker-reinforced ceramics, they offer exceptional mechanical strength, high-temperature resistance, and chemical stability. This technology combines the flexibility of 3D printing with the superior properties of ceramic materials, making them ideal for high-precision, high-load industrial automation applications.
Applications
-
Industrial Automation: End-effectors for robotic arms in high-temperature or corrosive environments
-
Semiconductor Manufacturing: Wafer handling and precision assembly
-
Medical Robotics: Surgical instrument arms and high-precision positioning systems
-
Aerospace: High-temperature robotic arms for extreme environment operations
-
Scientific Research: Customized robotic arm structures with optimized mechanical properties
Advantages
✅ High Strength (Silicon carbide whisker-reinforced, flexural strength up to 300-400 MPa)
✅ High-Temperature Resistance (Long-term use at 1600°C+)
✅ Lightweight (Density 3.6-3.9 g/cm³, lighter than metal arms)
✅ Corrosion Resistance (Resistant to acids, alkalis, and oxidation)
✅ Customizable Design (3D printing enables complex, integrated structures)
Specifications
| Parameter | Typical Value |
| Material | Alumina (Al₂O₃), Silicon Carbide Whisker-Reinforced Ceramic |
| Printing Technology | DIW-3D Printing / SLA 3D Printing |
| Max. Temperature Resistance | 1600°C-1800°C |
| Flexural Strength | 300-400 MPa |
| Density | 3.6-3.9 g/cm³ |
| Precision | ±0.1mm (SLA 3D Printing) |
| Operating Environment | High-temperature, corrosive, high-vacuum |
Manufacturing Process
-
Material Preparation: Ball milling of alumina powder + silicon carbide whiskers
-
3D Printing: Direct Ink Writing (DIW) or Stereolithography (SLA)
-
Debinding: Gradual heating to remove organic binders
-
High-Temperature Sintering: Densification at 1600°C-1800°C
-
Precision Machining: CNC grinding and polishing for surface refinement
Usage Guidelines
⚠️ Avoid Impact: Ceramic materials are brittle—handle with care
⚠️ Temperature Control: Heating rate ≤5°C/min to prevent thermal shock
⚠️ Installation: Use elastic gaskets to absorb mechanical stress
⚠️ Maintenance: Regularly inspect for surface wear and avoid overloading
After-Sales Service
Technical Support (3D model optimization advice)
Customization (Special sizes and structural designs available)
FAQ
Q: What is the lifespan of 3D-printed ceramic robotic arms?
A: Under normal conditions, they can last over 5 years—far exceeding traditional metal arms.
Q: Can large robotic arms be printed?
A: Yes, hybrid additive-subtractive manufacturing enables large-scale printing.
Q: Are conductive ceramics available?
A: Custom ceramic composites with conductive additives can be produced.
